BUILDING WITH POST-INSTALLED REBAR IN CONCRETE

What is rebar used for?

Post-installed rebar can be used to build most connections on site – for instance, walls, slabs, beams, foundations or supporting columns.

EXTEND EXISTING STRUCTURES

These are the most common applications of post-installed rebars, for example for:

  • Wall extensions
  • Column extensions
  • Beam extensions
  • Slab extensions
Hilti post installed rebar wall extensions

Wall extensions

Hilti post installed rebar HIT-RE 500 column extensions

Column extensions

Hilti post installed rebar balcony extensions

Balcony extensions

Hilti post installed rebar slab extensions

Slab extensions

CONNECT NEW COMPONENTS TO EXISTING STRUCTURES

These are simply supported or rigid connections:

  • Beam to wall connections
  • Slab to wall connections
  • Connecting staircases to existing walls
  • Wall to wall connections
  • Beam to column
Hilti post installed rebar beam to wall extensions

Beam to wall connection

Hilti post installed rebar corbel to wall connection

Slab to wall connection

Hilti post installed rebar staircase connected to an existing wall

Staircase connected to an existing wall

Hilti post installed rebar wall to wall connection

Wall to wall connection

STRENGTHEN EXISTING CONCRETE STRUCTURES

We have also developed unique solutions for punching reinforcement.

  • Concrete overlay
  • Ceiling reinforcement
  • Column foundation
  • Bridge deck strengthening
Hilti post installed rebar concrete overlay

Concrete overlay

Hilti post installed rebar ceiling reinforcement

Ceiling reinforcement

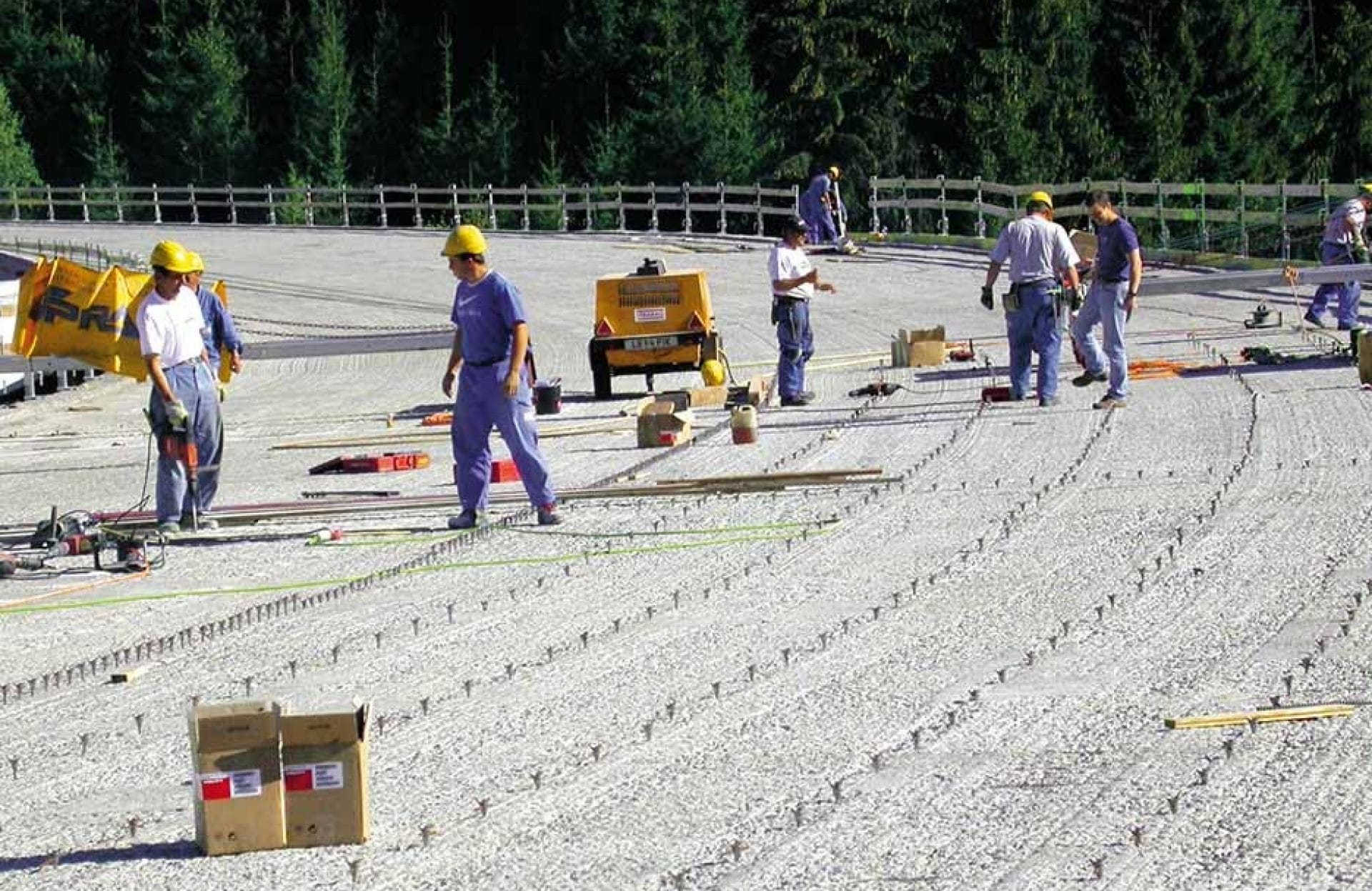

Hilti post installed rebar bridge deck strengthening

Bridge deck strengthening

Hilti post installed rebar column foundation

Column foundation

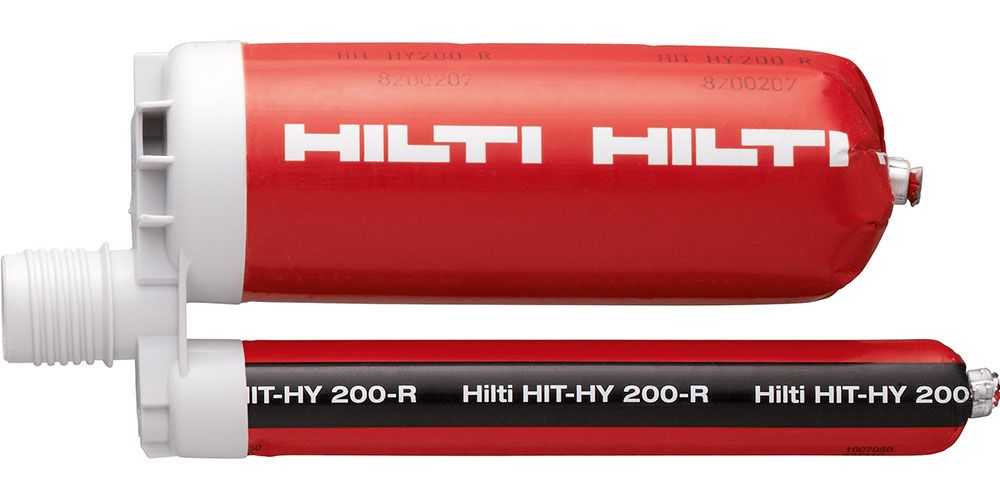

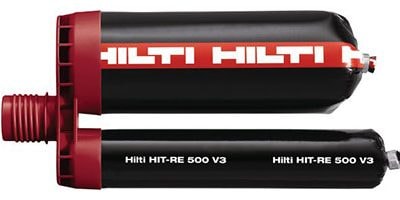

RELATED HILTI CHEMICAL ANCHORS FOR POST-INSTALLED REBAR
